Error Detection

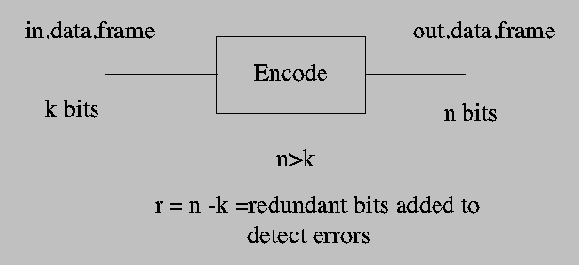

• Example: n=2k
  • Repeat the frame
  • k redundant bits

• Example: Simple Parity Check

• Even Parity
  • number of "1" per block is even

• Odd Parity
  • number of "1" per block is odd

• Redundancy ratio = k+1/k

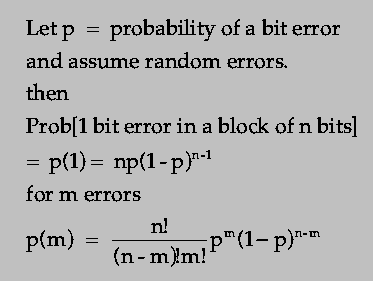

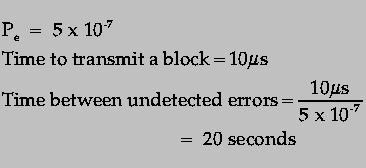

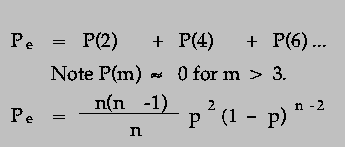

• Performance criteria for error detection codes is the probability of an undetected error,

•







---
